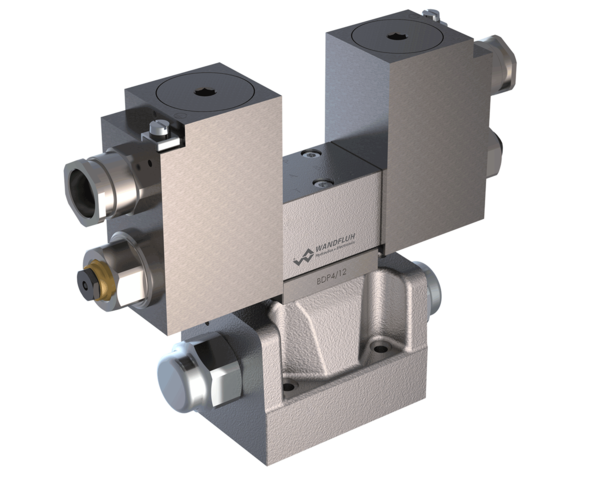

Ex d explosion-proof proportional spool valves NG10, Wandfluh WVBFA10
Ex d explosion-proof proportional spool valves NG10, Wandfluh WVBFA10
Mode
Proportional
Hydraulic function
Directional spool valve
Size
NG10
Qmax
200 L/min
Pmax
350 bar
Actuation
Ex d solenoid
Certificates
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Execution
Standard
Protection class
IP65 / IP66 / IP67
Seal kit
251.2923 (NBR)
Valve configurator
WVBFA10
-
-
-
-
/
/
-
-
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | WVBFA10-BC1-S-90-ti-X5/L15 | 488.0007 | WVBFA10-BC1-S-90-ti/L15 | Without coil |
| Wandfluh | WVBFA10-BCA-S-90-ae-G24/L15-M248 | 489.0049 | WVBFA10-BCA-S-90-ae/L15-M248 | U= 24 VDC |
| Wandfluh | WVBFA10-BCA-S-90-ti-G24/L15 | 489.0041 | WVBFA10-BCA-S-90-ti/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-BCA-S-90-ti-y-G24/L15-Z604 | 489.0040 | WVBFA10-BCA-S-90-ti-y/L15-Z604 | U= 24 VDC |
| Wandfluh | WVBFA10-BCA-S-90-xi-G24/L15 | 489.0051 | WVBFA10-BCA-S-90-xi/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-BD1-V-90-ti-G24/L15 | 488.0004 | WVBFA10-BD1-V-90-ti/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-60-ti-G24/L9 | 489.2036 | WVBFA10-BDA-V-60-ti/L9 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-60-ti-G24/L9-M187 | 489.2037 | WVBFA10-BDA-V-60-ti/L9-M187 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-ae-G24/L15 | 489.2801 | WVBFA10-BDA-V-90-ae/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-ti-G24/L15 | 489.2041 | WVBFA10-BDA-V-90-ti/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-ti-X5/L15 | 489.2046 | WVBFA10-BDA-V-90-ti/L15 | Without coil |
| Wandfluh | WVBFA10-BDA-V-90-ti-G24/L15-HGK | 489.2048 | WVBFA10-BDA-V-90-ti/L15-HGK | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-ti-G24/L17/UL | 489.2034 | WVBFA10-BDA-V-90-ti/L17/UL | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-ti-y-G24/L15-Z604 | 489.2038 | WVBFA10-BDA-V-90-ti-y/L15-Z604 | U= 24 VDC |
| Wandfluh | WVBFA10-BDA-V-90-xi-G24/L15 | 489.2042 | WVBFA10-BDA-V-90-xi/L15 | U= 24 VDC |
| Wandfluh | WVBFA10-DA2-V-90-ti-G24/L15 | 488.0005 | WVBFA10-DA2-V-90-ti/L15 | U= 24 VDC |
