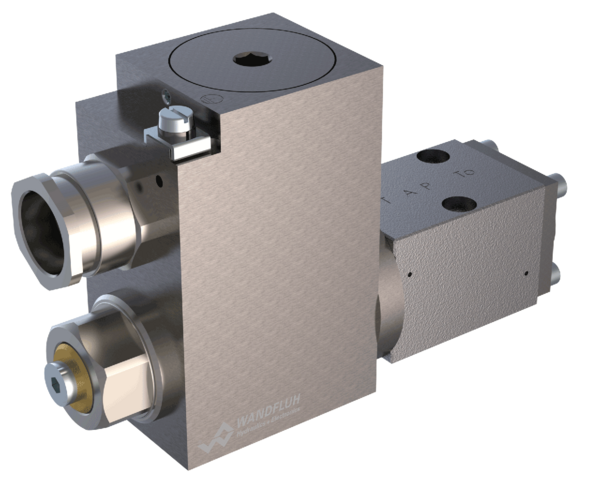

Elettrovalvole a otturatore antideflagranti Ex d NG4-Mini, Wandfluh BEXd2204
Elettrovalvole a otturatore antideflagranti Ex d NG4-Mini, Wandfluh BEXd2204
Define your type code with the valve configurator
Modo
On/off
Funzione idraulica
Valvola direzionale a tenuta (zero perdite)
Montaggio
A piastra
Dimensione
NG4-Mini (Wandfluh)
Qmax
15 L/min
Pmax
350 bar
Azionamento
Solenoide Ex d
Certificati
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Esecuzione
Standard
Grado di protezione
IP65 / IP66 / IP67
Configuratore di valvole
BEXd
-
/
/
-
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | BEXd22040b-G24/L15 | 532.1116 | BEXd22040b/L15 | U= 24 VDC |
| Wandfluh | BEXd22040b-R115/L15 | 532.1123 | BEXd22040b/L15 | U= 115 VAC |
| Wandfluh | BEXd22040b-R230/L15 | 532.1121 | BEXd22040b/L15 | U= 230 VAC |
| Wandfluh | BEXd22040b-X5/L15 | 532.1128 | BEXd22040b/L15 | Without coil |
| Wandfluh | BEXd22040b-G24/L9 | 532.1120 | BEXd22040b/L9 | U= 24 VDC |
| Wandfluh | BEXd22040b-R230/L9 | 532.1124 | BEXd22040b/L9 | U= 230 VAC |
| Wandfluh | BEXd22040b-G24/L9-M187 | 532.1125 | BEXd22040b/L9-M187 | U= 24 VDC |
| Wandfluh | BEXd22041a-G24/L15 | 532.0134 | BEXd22041a/L15 | U= 24 VDC |
| Wandfluh | BEXd22041a-R230/L15 | 532.0135 | BEXd22041a/L15 | U= 230 VAC |
| Wandfluh | BEXd22041a-G24/L15-D1 | 532.0136 | BEXd22041a/L15-D1 | U= 24 VDC |
| Wandfluh | BEXd22041a-X5/L15-D1 | 532.0144 | BEXd22041a/L15-D1 | Without coil |
| Wandfluh | BEXd22041a-G24/L15-Z604 | 532.0141 | BEXd22041a/L15-Z604 | U= 24 VDC |
| Wandfluh | BEXd22041a-G24/L9 | 532.0139 | BEXd22041a/L9 | U= 24 VDC |
| Wandfluh | BEXd22041a-X5/L9-D1 | 532.0147 | BEXd22041a/L9-D1 | Without coil |
| Wandfluh | BEXd22041a-G24/L9-M187 | 532.1127 | BEXd22041a/L9-M187 | U= 24 VDC |
| Wandfluh | BEXd32040b-G110/L15 | 532.3170 | BEXd32040b/L15 | U= 110 VDC |
| Wandfluh | BEXd32040b-G125/L15 | 532.3194 | BEXd32040b/L15 | U= 125 VDC |
| Wandfluh | BEXd32040b-G24/L15 | 532.3166 | BEXd32040b/L15 | U= 24 VDC |
| Wandfluh | BEXd32040b-G48/L15 | 532.3183 | BEXd32040b/L15 | U= 48 VDC |
| Wandfluh | BEXd32040b-R115/L15 | 532.3189 | BEXd32040b/L15 | U= 115 VAC |
| Wandfluh | BEXd32040b-R230/L15 | 532.3181 | BEXd32040b/L15 | U= 230 VAC |
| Wandfluh | BEXd32040b-X5/L15 | 532.3184 | BEXd32040b/L15 | Without coil |
| Wandfluh | BEXd32040b-G24/L15-D1 | 532.3219 | BEXd32040b/L15-D1 | U= 24 VDC |
| Wandfluh | BEXd32040b-G24/L15-Z604 | 532.3214 | BEXd32040b/L15-Z604 | U= 24 VDC |
| Wandfluh | BEXd32040b-G24/L9 | 532.3165 | BEXd32040b/L9 | U= 24 VDC |
| Wandfluh | BEXd32040b-G48/L9 | 532.3187 | BEXd32040b/L9 | U= 48 VDC |
| Wandfluh | BEXd32040b-R115/L9 | 532.3177 | BEXd32040b/L9 | U= 115 VAC |
| Wandfluh | BEXd32040b-R230/L9 | 532.3191 | BEXd32040b/L9 | U= 230 VAC |
| Wandfluh | BEXd32040b-X5/L9 | 532.3195 | BEXd32040b/L9 | Without coil |
| Wandfluh | BEXd32040b-G24/L9-D1 | 532.3221 | BEXd32040b/L9-D1 | U= 24 VDC |
| Wandfluh | BEXd32040b-X5/L9-D1 | 532.3208 | BEXd32040b/L9-D1 | Without coil |
| Wandfluh | BEXd32040b-G110/L9-M165Z604 | 532.3203 | BEXd32040b/L9-M165Z604 | U= 110 VDC |
| Wandfluh | BEXd32040b-G115/L15 | 532.3173 | BEXd32040b-G115/L15 | U= 115 VDC |
| Wandfluh | BEXd32041a-G110/L15 | 532.3188 | BEXd32041a/L15 | U= 110 VDC |
| Wandfluh | BEXd32041a-G125/L15 | 532.3180 | BEXd32041a/L15 | U= 125 VDC |
| Wandfluh | BEXd32041a-G24/L15 | 532.3162 | BEXd32041a/L15 | U= 24 VDC |
| Wandfluh | BEXd32041a-R115/L15 | 532.3163 | BEXd32041a/L15 | U= 115 VAC |
| Wandfluh | BEXd32041a-R230/L15 | 532.3169 | BEXd32041a/L15 | U= 230 VAC |
| Wandfluh | BEXd32041a-X5/L15 | 532.3182 | BEXd32041a/L15 | Without coil |
| Wandfluh | BEXd32041a-G125/L15-D1 | 532.3218 | BEXd32041a/L15-D1 | U= 125 VDC |
| Wandfluh | BEXd32041a-G24/L15-D1 | 532.3212 | BEXd32041a/L15-D1 | U= 24 VDC |
| Wandfluh | BEXd32041a-G48/L15-D1 | 532.3179 | BEXd32041a/L15-D1 | U= 48 VDC |
| Wandfluh | BEXd32041a-G24/L6 | 532.3155 | BEXd32041a/L6 | U= 24 VDC |
| Wandfluh | BEXd32041a-G24/L9 | 532.3168 | BEXd32041a/L9 | U= 24 VDC |
| Wandfluh | BEXd32041a-G48/L9 | 532.3186 | BEXd32041a/L9 | U= 48 VDC |
| Wandfluh | BEXd32041a-R115/L9 | 532.3178 | BEXd32041a/L9 | U= 115 VAC |
| Wandfluh | BEXd32041a-R230/L9 | 532.3192 | BEXd32041a/L9 | U= 230 VAC |
| Wandfluh | BEXd32041a-X5/L9 | 532.3196 | BEXd32041a/L9 | Without coil |
| Wandfluh | BEXd32041a-G24/L9-D1 | 532.3220 | BEXd32041a/L9-D1 | U= 24 VDC |
| Wandfluh | BEXd32041a-X5/L9-D1 | 532.3209 | BEXd32041a/L9-D1 | Without coil |
| Wandfluh | BEXd32041a-G115/L15 | 532.3206 | BEXd32041a-G115/L15 | U= 115 VDC |
