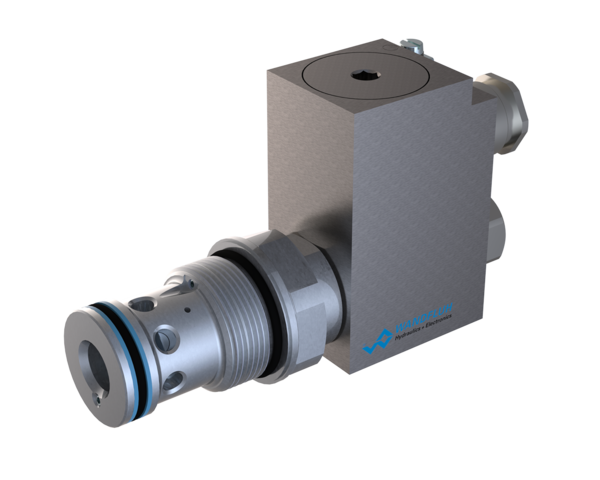

Ex d Explosionsgeschützte Magnetsitzventilpatrone M42x2, Wandfluh SVYPM42
Ex d Explosionsgeschützte Magnetsitzventilpatrone M42x2, Wandfluh SVYPM42
Art
On/off
Hydraulikfunktion
Wegesitzventil (leckfrei)
Größe
M42x2
Qmax
300 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Standard
Schutzart
IP65 / IP66 / IP67
Dichtsatz
251.3017 (NBR) / 251.3041 (FKM)
Ventilkonfigurator
SVYPM42
-
-
/
/
-
-
| Type code examples | Internal number | Code on cartridge | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | SVYPM42-AB-G24/L15 | 500.5013 | SVYPM42-AB/L15 | U= 24 VDC |
| Wandfluh | SVYPM42-AB-G24/L15-D1 | 500.5021 | SVYPM42-AB/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM42-AB-G24/L15-Z604 | 500.5027 | SVYPM42-AB/L15-Z604 | U= 24 VDC |
| Wandfluh | SVYPM42-AB-G24/L17/UL | 500.5063 | SVYPM42-AB/L17/UL | U= 24 VDC |
| Wandfluh | SVYPM42-BA-G24/L15 | 500.5059 | SVYPM42-BA/L15 | U= 24 VDC |
| Wandfluh | SVYPM42-BA-X5/L15 | 500.5040 | SVYPM42-BA/L15 | Without coil |
| Wandfluh | SVYPM42-BA-G24/L15-D1 | 500.5067 | SVYPM42-BA/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM42-BA-G24/L15-HZ | 500.5069 | SVYPM42-BA/L15-HZ | U= 24 VDC |
| Wandfluh | SVYPM42-BC-G12/L15 | 500.5047 | SVYPM42-BC/L15 | U= 12 VDC |
| Wandfluh | SVYPM42-BC-G24/L15 | 500.5015 | SVYPM42-BC/L15 | U= 24 VDC |
| Wandfluh | SVYPM42-BC-X5/L15 | 500.5034 | SVYPM42-BC/L15 | Without coil |
| Wandfluh | SVYPM42-CB-G24/L15-HG | 500.5060 | SVYPM42-CB/L15-HG | U= 24 VDC |
