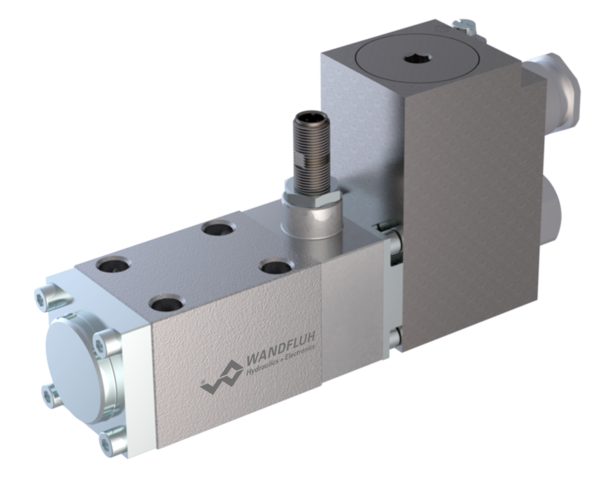

Electroválvulas estancas antideflagrantes Ex d con sensor de posición inductivo NG6, Wandfluh AEXd_206_Z104
Electroválvulas estancas antideflagrantes Ex d con sensor de posición inductivo NG6, Wandfluh AEXd_206_Z104
Modo
On/off
Función hidráulica
Válvula direccional estanca (sin fugas)
Tamaño
NG6
Qmax
40 L/min
Pmax
350 bar
Accionamiento
Solenoide Ex d
Certificados
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ejecución
Sensor de posición inductivo
Grado de protección
IP65 / IP66 / IP67
Configurador de válvulas
AEXd
-
Z104
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | AEXd22060b-G24/L15-Z104 | 535.1191 | AEXd22060b/L15-Z104 | U= 24 VDC |
| Wandfluh | AEXd22061a-G24/L15-M187Z104 | 535.0180 | AEXd22061a/L15-M187Z104 | U= 24 VDC |
| Wandfluh | AEXd22061a-G24/L15-Z104 | 535.0154 | AEXd22061a/L15-Z104 | U= 24 VDC |
| Wandfluh | AEXd32060b-G24/L9-Z104 | 535.3326 | AEXd32060b/L9-Z104 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-D1Z104 | 535.3333 | AEXd32061a/L15-D1Z104 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L15-Z104 | 535.3253 | AEXd32061a/L15-Z104 | U= 24 VDC |
| Wandfluh | AEXd32061a-G24/L9-Z104 | 535.3285 | AEXd32061a/L9-Z104 | U= 24 VDC |
