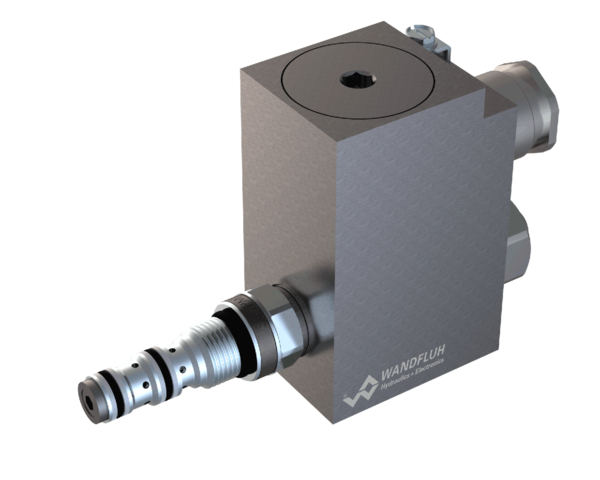

Electroválvulas estancas antideflagrantes Ex d cartuchos M18x1,5, Wandfluh SDYPM18
Electroválvulas estancas antideflagrantes Ex d cartuchos M18x1,5, Wandfluh SDYPM18
Modo
On/off
Función hidráulica
Válvula direccional estanca (sin fugas)
Tamaño
M18x1,5
Qmax
20 L/min
Pmax
350 bar
Accionamiento
Solenoide Ex d
Certificados
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ejecución
Estándar
Grado de protección
IP65 / IP66 / IP67
Configurador de válvulas
SDYPM18
-
-
/
/
-
| Type code examples | Internal number | Code on cartridge | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | SDYPM18-AB-G12/L15 | 500.1134 | SDYPM18-AB/L15 | U= 12 VDC |
| Wandfluh | SDYPM18-AB-G24/L15 | 500.1124 | SDYPM18-AB/L15 | U= 24 VDC |
| Wandfluh | SDYPM18-AB-R230/L15 | 500.1128 | SDYPM18-AB/L15 | U= 230 VAC |
| Wandfluh | SDYPM18-AB-G24/L15-D1 | 500.1217 | SDYPM18-AB/L15-D1 | U= 24 VDC |
| Wandfluh | SDYPM18-AB-G24/L9 | 500.1039 | SDYPM18-AB/L9 | U= 24 VDC |
| Wandfluh | SDYPM18-AB-R230/L9 | 500.1051 | SDYPM18-AB/L9 | U= 230 VAC |
| Wandfluh | SDYPM18-AB-X5/L9 | 500.1186 | SDYPM18-AB/L9 | Without coil |
| Wandfluh | SDYPM18-AB-X5/L9-D1 | 500.1212 | SDYPM18-AB/L9-D1 | Without coil |
| Wandfluh | SDYPM18-AB-G24/L9-M165 | 500.1174 | SDYPM18-AB/L9-M165 | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G12/L15 | 500.1135 | SDYPM18-BA/L15 | U= 12 VDC |
| Wandfluh | SDYPM18-BA-G24/L15 | 500.1121 | SDYPM18-BA/L15 | U= 24 VDC |
| Wandfluh | SDYPM18-BA-R230/L15 | 500.1199 | SDYPM18-BA/L15 | U= 230 VAC |
| Wandfluh | SDYPM18-BA-X5/L15 | 500.1152 | SDYPM18-BA/L15 | Without coil |
| Wandfluh | SDYPM18-BA-G24/L15/MA | 500.1188 | SDYPM18-BA/L15/MA | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G24/L15-D1 | 500.1200 | SDYPM18-BA/L15-D1 | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G24/L15-HG | 500.1211 | SDYPM18-BA/L15-HG | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G24/L15-HNK | 500.1123 | SDYPM18-BA/L15-HNK | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G24/L17/UL | 500.1228 | SDYPM18-BA/L17/UL | U= 24 VDC |
| Wandfluh | SDYPM18-BA-G24/L9 | 500.1122 | SDYPM18-BA/L9 | U= 24 VDC |
| Wandfluh | SDYPM18-FG-G24/L15 | 500.1119 | SDYPM18-FG/L15 | U= 24 VDC |
| Wandfluh | SDYPM18-FG-X5/L15 | 500.1221 | SDYPM18-FG/L15 | Without coil |
| Wandfluh | SDYPM18-FG-G24/L15-D1 | 500.1147 | SDYPM18-FG/L15-D1 | U= 24 VDC |
| Wandfluh | SDYPM18-FG-G24/L15-Z604 | 500.1161 | SDYPM18-FG/L15-Z604 | U= 24 VDC |
| Wandfluh | SDYPM18-FG-R115/L17/UL | 500.1159 | SDYPM18-FG/L17/UL | U= 115 VAC |
| Wandfluh | SDYPM18-FG-G24/L9 | 500.1126 | SDYPM18-FG/L9 | U= 24 VDC |
| Wandfluh | SDYPM18-FG-R230/L9 | 500.1125 | SDYPM18-FG/L9 | U= 230 VAC |
| Wandfluh | SDYPM18-FG-X5/L9 | 500.1115 | SDYPM18-FG/L9 | Without coil |
| Wandfluh | SDYPM18-FG-G24/L9-D1 | 500.1167 | SDYPM18-FG/L9-D1 | U= 24 VDC |
