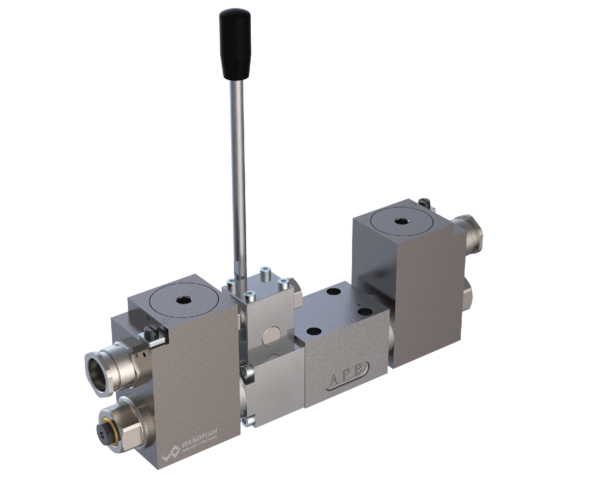

Ex d Explosionsgeschützte Wegemagnetventile mit zusätzlichem Handhebel NG6, Wandfluh WDYFA06_Z568
Ex d Explosionsgeschützte Wegemagnetventile mit zusätzlichem Handhebel NG6, Wandfluh WDYFA06_Z568
Art
On/off
Hydraulikfunktion
Wegeschieberventil
Größe
NG6
Qmax
80 L/min
Pmax
350 bar
Betätigung
Ex d-Magnet
Zertificate
ATEX, UKEX
IECEx
CCC
EAC
Australia
MA
USA/Canada
India
Ausführung
Zusätzlicher Handhebel
Schutzart
IP65 / IP66 / IP67
Dichtsatz
251.2223 (NBR)
Ventilkonfigurator
WDYFA06
-
-
Z568
| Type code examples | Internal number | Code on valve plate | Coil voltage | |
|---|---|---|---|---|
| Wandfluh | WDYFA06-AB1-G24/L15-Z568 | 319.0269 | WDYFA06-AB1/L15-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-AB3-G24/L15-Z568 | 321.0068 | WDYFA06-AB3/L15-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-ACB-G24/L15-Z568 | 321.1099 | WDYFA06-ACB/L15-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-ACB-G24/L9-Z568 | 321.1106 | WDYFA06-ACB/L9-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-G24/L15-Z568 | 321.2114 | WDYFA06-ADB/L15-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-X5/L15-Z568 | 321.2149 | WDYFA06-ADB/L15-Z568 | Without coil |
| Wandfluh | WDYFA06-ADB-G24/L15-Z568 L=130 | 321.2154 | WDYFA06-ADB/L15-Z568 L=130 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-G24/L15-Z568 L=88 | 321.2156 | WDYFA06-ADB/L15-Z568 L=88 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-G24/L17/UL-Z568 | 321.2120 | WDYFA06-ADB/L17/UL-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-ADB-G24/L9-Z568 | 321.2138 | WDYFA06-ADB/L9-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-AFB-G24/L15-Z568 | 321.4049 | WDYFA06-AFB/L15-Z568 | U= 24 VDC |
| Wandfluh | WDYFA06-AFB-X5/L15-Z568 | 321.4050 | WDYFA06-AFB/L15-Z568 | Without coil |
